T-Nuts

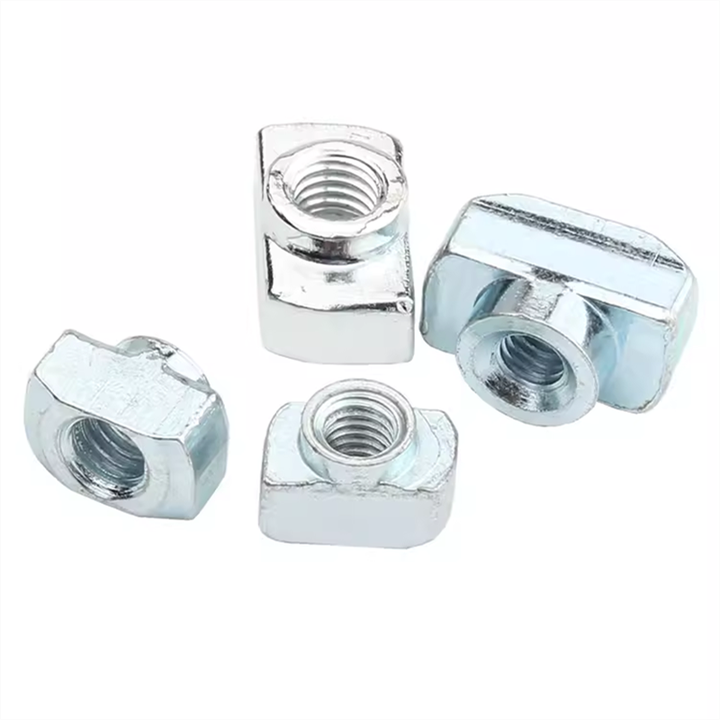

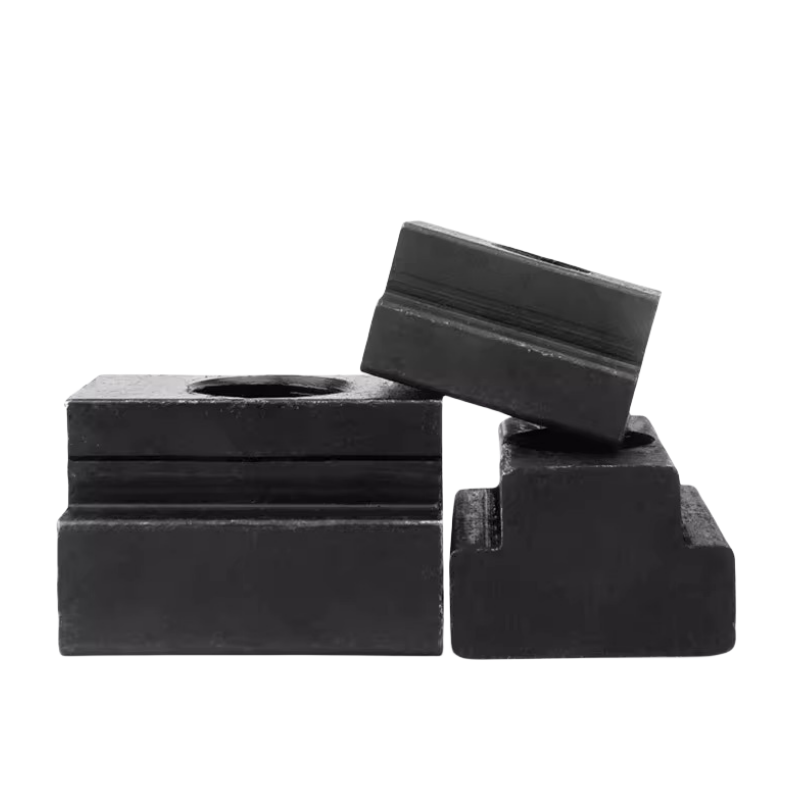

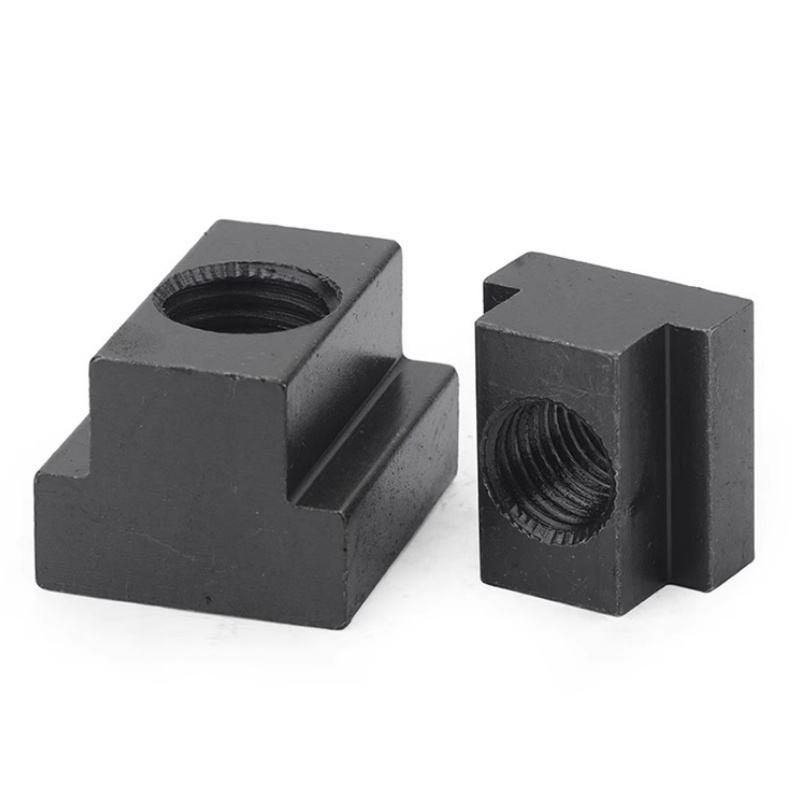

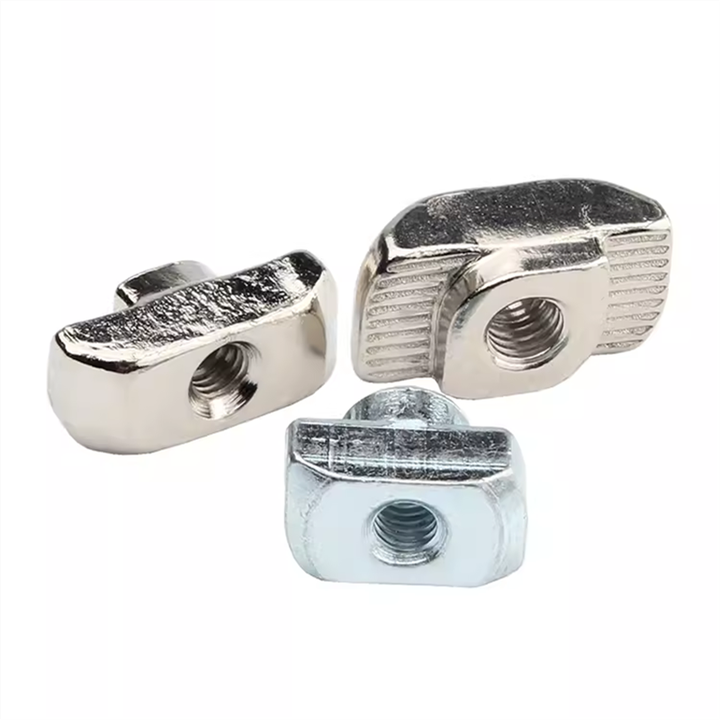

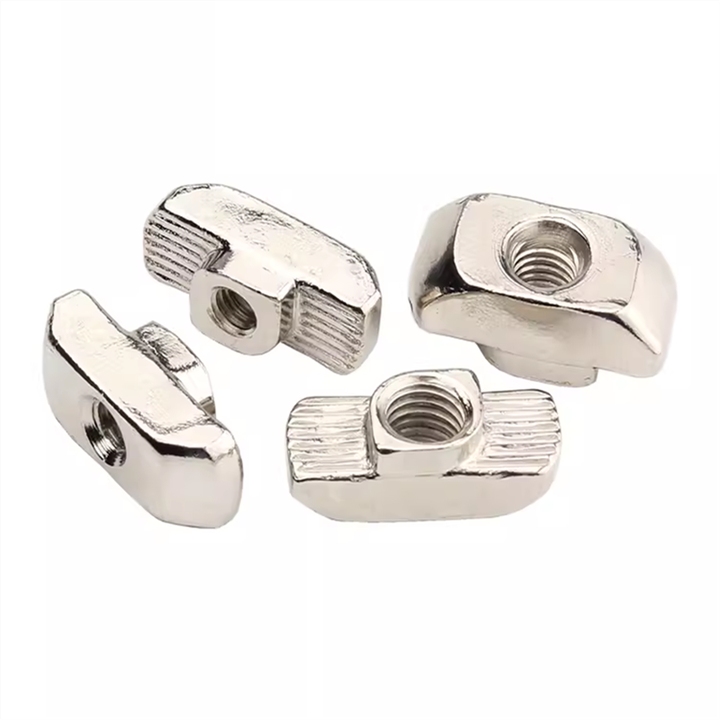

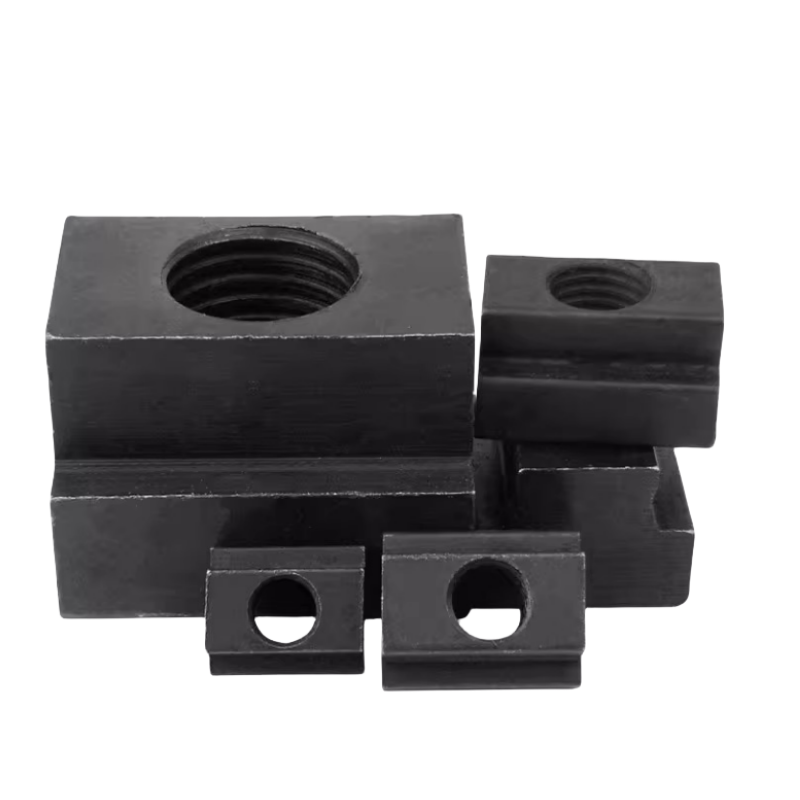

T-Nuts (T-Slot Nuts): Overview
Material:
- Common materials:
- Carbon steel: Grade 8.8/10.9 (heat-treated for high strength), zinc-plated or hot-dip galvanized.
- Stainless steel: 304/316 (corrosion resistance for humid or chemical environments).
- Alloy steel: For extreme load-bearing applications (e.g., ASTM A193).
- Surface treatments: Zinc plating, Dacromet coating, or passivation (stainless steel) to resist rust and wear.
Manufacturing Process:
- Cold Forging: Forms the T-shaped body from steel wire or sheet.
- Prong/Flange Stamping: Creates prongs, flanges, or serrated edges to grip T-slot channels.
- Thread Rolling: Precision internal threading (metric/SAE) via dies for bolt compatibility.
- Heat Treatment: Applied to high-grade steel for enhanced hardness (HRC 25-40).
- Surface Finishing: Electroplating or coating for environmental protection.
Key Production Considerations:
- Dimensional accuracy: Ensure precise width/height to fit standard T-slots (e.g., 10mm, ½”).
- Prong/flange design: Sharp edges for anti-rotation; uniform spacing for consistent grip.
- Thread concentricity: Avoid cross-threading risks with precise alignment.
- Coating uniformity: Full coverage on prongs and threads to prevent corrosion.
Applications:
- CNC machinery: Securing clamps, fixtures, and tooling on T-slot tables.
- Industrial workbenches: Modular assembly systems for manufacturing lines.
- Woodworking: Adjustable jigs and sleds for precision cutting.
- 3D printers: Frame assembly and component mounting.
- Automation systems: Linear guides and robotic arm fixtures.
Installation:
- Slot alignment: Insert the T-nut into the T-slot channel and slide to the desired position.
- Bolt insertion: Thread a bolt through the T-nut and into the component to be clamped.
- Tightening: Use a wrench to tighten the bolt, forcing the prongs/flanges to grip the slot walls.
- Torque control: Follow manufacturer specifications (e.g., 20–100 Nm for M8–M16 nuts).
- Repositioning: Loosen the bolt, adjust the T-nut, and retighten for modular flexibility.
Note:
- Compatibility: Match T-nut dimensions to the T-slot profile (e.g., DIN 508 for European standards).
- Load capacity: Select material/grade based on dynamic/static load requirements.
- Maintenance: Periodically check for prong wear or coating damage in high-use environments.
Ideal for engineers, machinists, and DIYers requiring versatile, repositionable fastening in modular or precision systems.
Key Terms: T-Nuts, T-Slot Nuts, DIN 508, CNC Clamping, Modular Fasteners.
Character Count: Optimized for technical clarity and brevity.
