Slotted Hex Nut

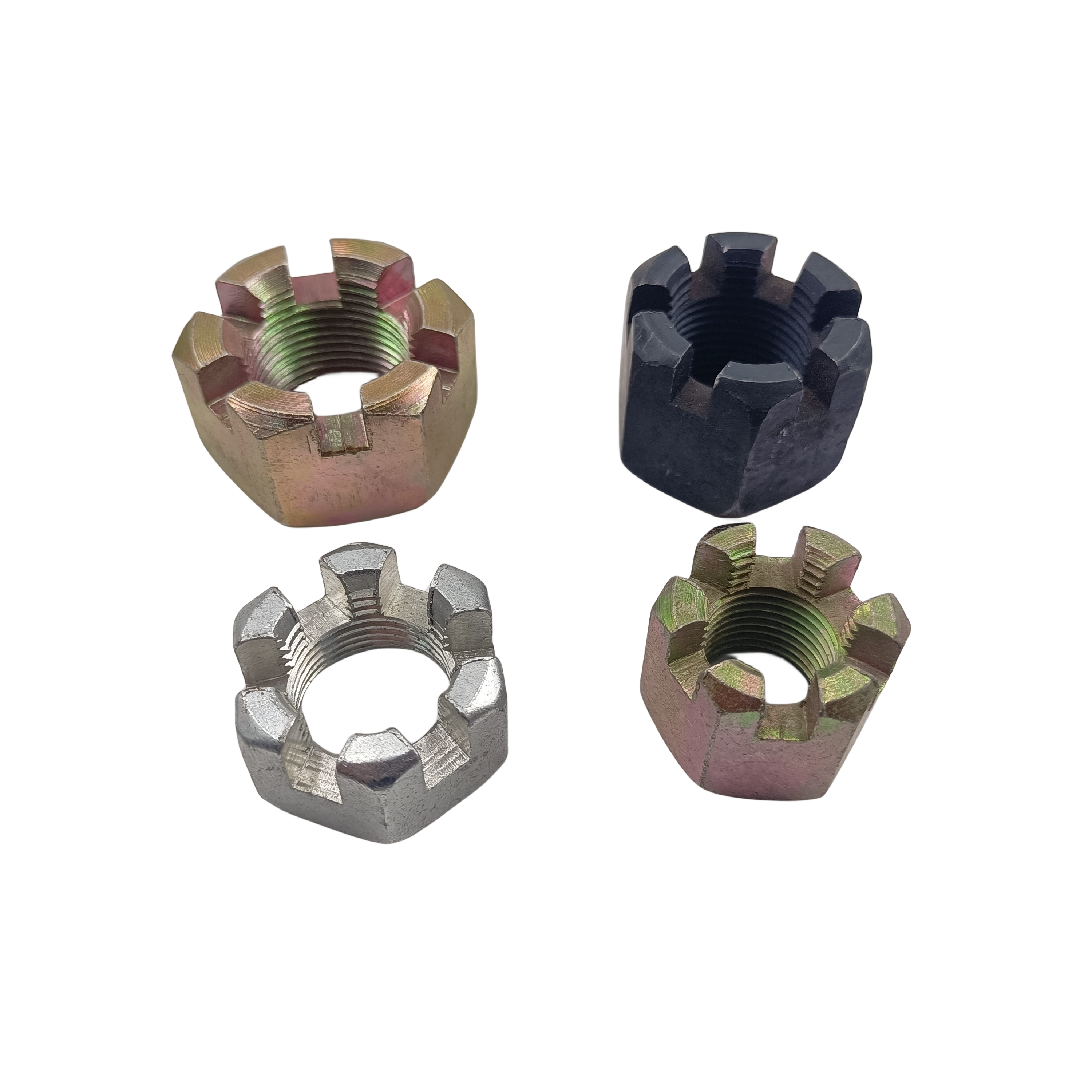

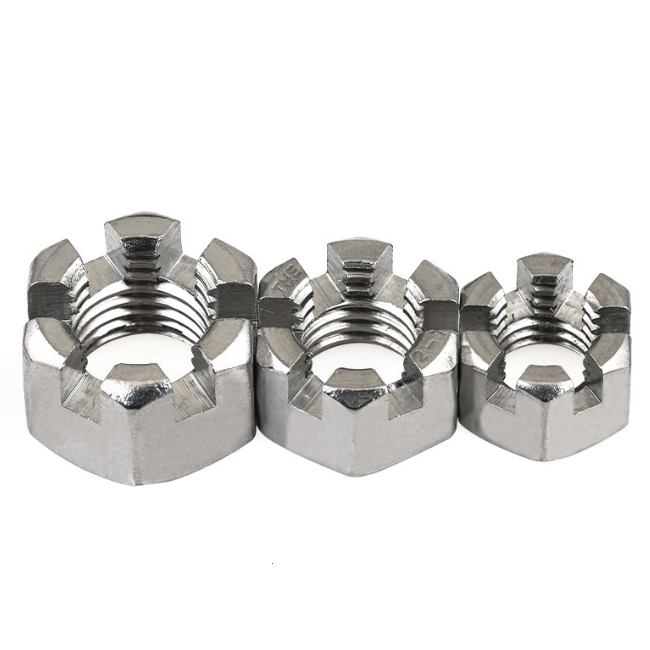

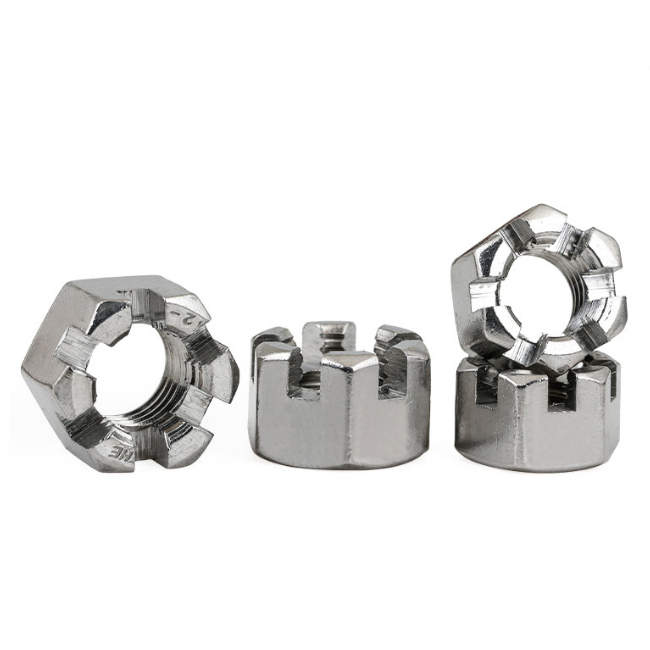

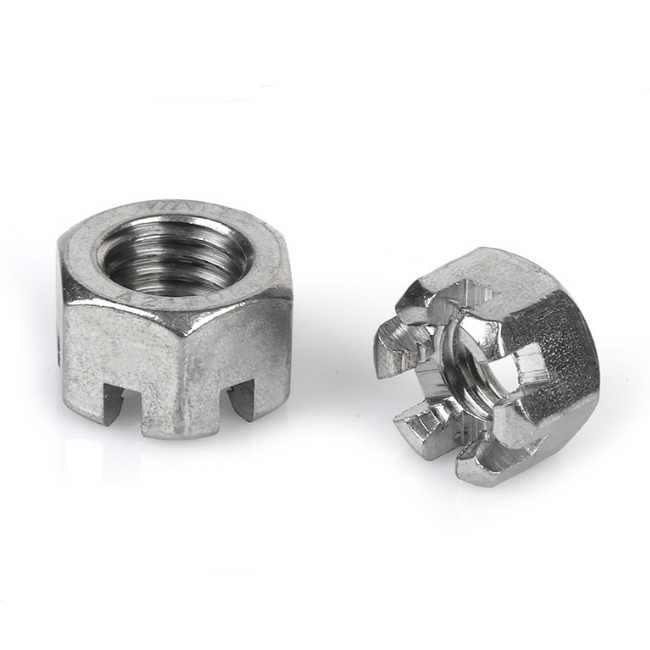

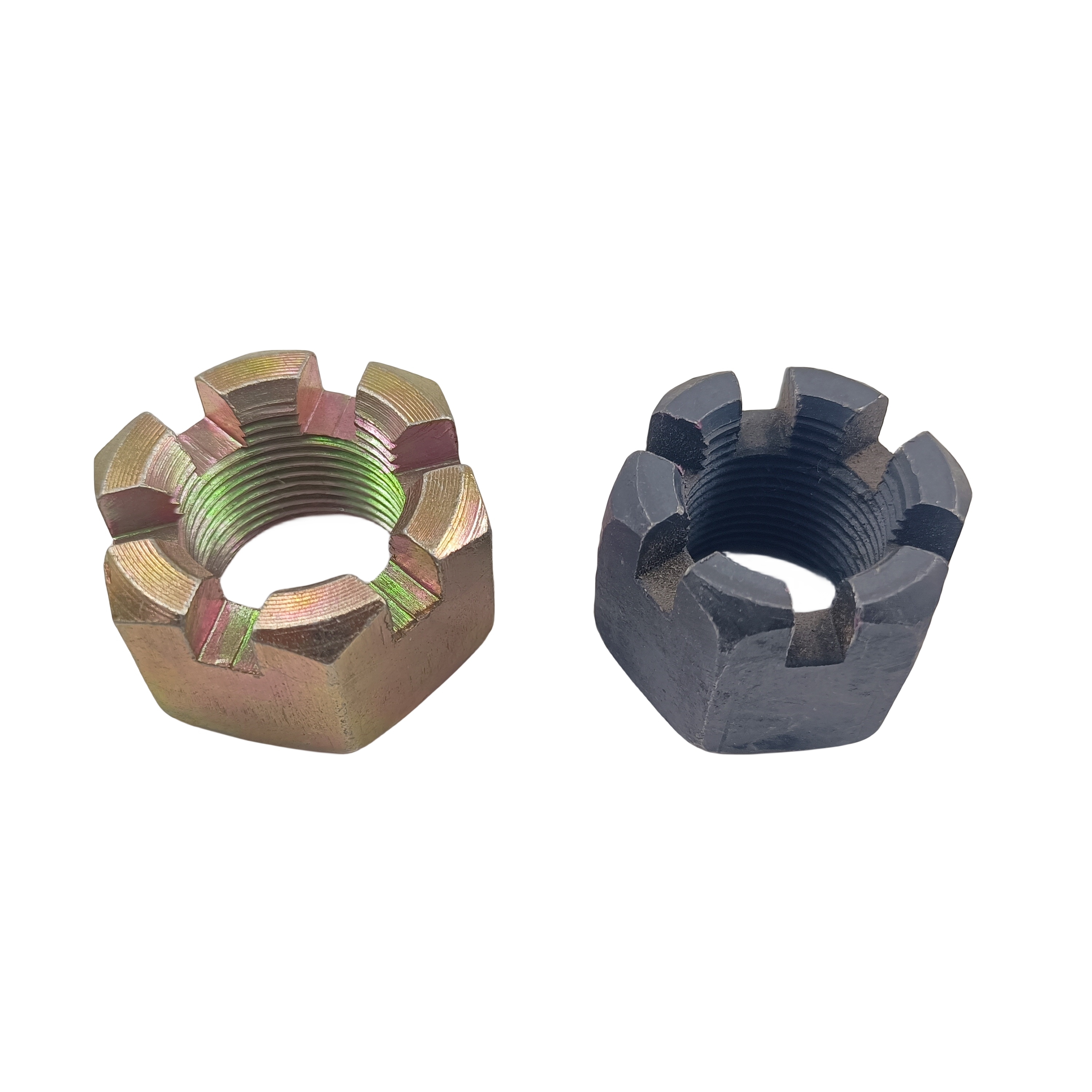

**Hex Slotted Nuts (Castellated Hex Nuts): Overview**
**Material**:
– **Common materials**:
– **Carbon steel**: Grade 8/10 (heat-treated for high tensile strength).
– **Stainless steel**: 304/316 (corrosion resistance in harsh environments).
– **Alloy steel**: ASTM A194 (for high-temperature/pressure applications).
– **Surface treatments**: Zinc plating, hot-dip galvanizing, Dacromet coating, or passivation (stainless steel) for corrosion and wear resistance.
**Manufacturing Process**:
1. **Cold Forging**: Forms the hexagonal shape and internal threads from steel wire.
2. **Slot Machining**: Precision milling or stamping of radial slots (castellations) around the nut’s circumference.
3. **Thread Rolling**: Cold-forming threads (metric/SAE) to enhance strength and fatigue resistance.
4. **Heat Treatment**: Quenching and tempering (for high-grade steel) to achieve hardness (HRC 22-35).
5. **Surface Finishing**: Electroplating or coating for environmental protection.
**Key Production Considerations**:
– **Slot alignment**: Uniform depth, spacing, and symmetry for proper cotter pin/wire insertion.
– **Thread concentricity**: Ensures compatibility with bolts and prevents cross-threading.
– **Material hardness**: Balances strength and ductility to avoid cracking during slot machining.
– **Coating uniformity**: Prevents flaking on slots or threads, ensuring corrosion resistance.
**Applications**:
– **Automotive**: Wheel hubs, axle assemblies, and suspension systems.
– **Heavy machinery**: Rotating shafts, gearboxes, and hydraulic systems.
– **Aerospace**: Landing gear, engine mounts, and flight control linkages.
– **Agriculture**: Tractor PTO shafts and tillage equipment.
– **Marine**: Propeller shafts and rigging components.
**Installation**:
1. **Thread engagement**: Tighten the nut onto the bolt until the slots align with the bolt’s pre-drilled hole.
2. **Cotter pin/wire insertion**: Insert a cotter pin or safety wire through the nut’s slot and bolt hole.
3. **Securing**: Bend the cotter pin ends or twist the wire to lock the nut in place.
4. **Torque control**: Follow manufacturer specifications to avoid overloading threads (e.g., 30–250 Nm for M12–M36 nuts).
5. **Inspection**: Verify the pin/wire is secure and the nut cannot rotate freely.
**Note**:
– **Safety compliance**: Use only in applications requiring rotation prevention (e.g., rotating shafts).
– **Material pairing**: Match nut and bolt materials to prevent galvanic corrosion (e.g., stainless steel with stainless bolts).
– **Reusability**: Replace nuts with deformed slots, damaged threads, or coating degradation.
*Ideal for engineers and technicians requiring fail-safe, vibration-resistant fastening in dynamic or high-load mechanical systems.*
—
**Key Terms**: Hex Slotted Nuts, Castellated Nuts, Cotter Pin Nuts, DIN 935, Vibration-Resistant Fasteners.
**Character Count**: Optimized for technical clarity and brevity.
