Shoulder Bolt

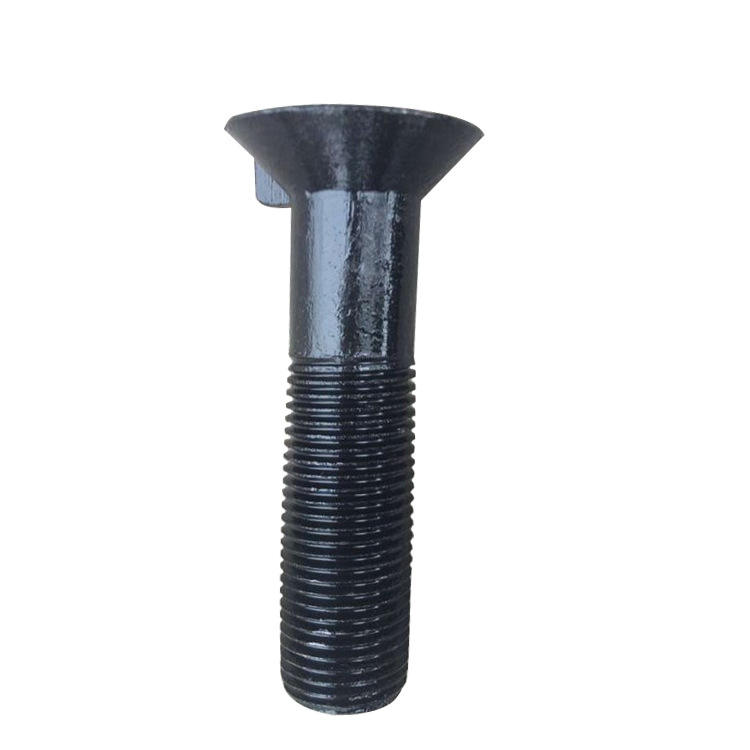

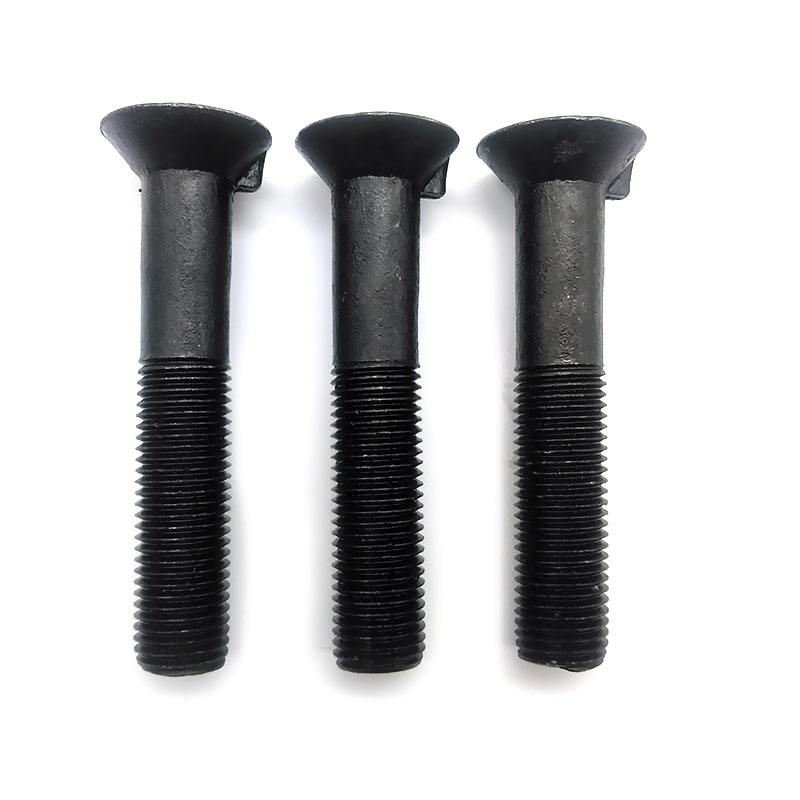

Countersunk Dowel Bolts (Shoulder Bolts with Anti-Rotation Features): Overview
Material:
- Common materials:
- Carbon steel: Grade 8.8/10.9 (heat-treated for high strength).
- Stainless steel: 304/316 (corrosion resistance in harsh environments).
- Alloy steel: 4140/4340 (for high-stress, high-temperature applications).
- Surface treatments: Zinc plating, Dacromet coating, black oxide, or electropolishing (stainless steel) for wear and corrosion resistance.
Manufacturing Process:
- Cold Heading: Forms the countersunk head and partially threaded shank.
- Shoulder Machining: CNC turning/grinding to create a precision dowel pin (shoulder) with tight tolerances (±0.02mm).
- Thread Rolling: Cold-formed threads (metric/SAE) for high fatigue resistance.
- Heat Treatment: Quenching and tempering (for carbon/alloy steel) to achieve target hardness (HRC 25-40).
- Surface Finishing: Coating or polishing for corrosion protection and reduced friction.
Key Production Considerations:
- Countersunk angle: Standard 90° or 100° angles to match DIN 7991/ISO 10642 specifications.
- Dowel shoulder precision: Diameter and concentricity must align with mating components to prevent misalignment.
- Material hardness: Balance strength and machinability to avoid cracking during shoulder machining.
- Surface finish: Smooth shoulder surface to minimize wear in dynamic assemblies.
Applications:
- Precision machinery: Securing gears, pulleys, and bearings in CNC equipment or robotics.
- Mold/die systems: Alignment of injection molds and stamping dies.
- Automotive: Transmission shafts, throttle linkages, and suspension components.
- Aerospace: Flight control systems and engine mounts requiring anti-rotation.
- Electronics: Precision fixtures for PCB assembly or optical devices.
Installation:
- Pre-drill holes: Drill a countersunk hole matching the bolt head angle and a clearance hole for the dowel shoulder.
- Alignment: Insert the dowel shoulder into the pre-machined slot or hole to prevent rotation.
- Thread engagement: Hand-tighten the bolt to ensure proper alignment before final torque.
- Torque application: Use a torque wrench to tighten to manufacturer specifications (e.g., 20–150 Nm for M8–M20 bolts).
- Inspection: Verify flush seating of the countersunk head and zero rotational play in the dowel joint.
Note:
- Load direction: Designed for axial loads; avoid excessive lateral forces on the dowel shoulder.
- Corrosion management: Match coating to environmental conditions (e.g., Dacromet for outdoor use).
- Reusability: Replace bolts with worn shoulders or damaged threads to maintain precision.
Ideal for engineers and technicians requiring vibration-resistant, non-rotational fastening in high-precision mechanical systems.
Key Terms: Countersunk Dowel Bolts, Shoulder Bolts, Anti-Rotation Fasteners, DIN 7991, Precision Alignment.
Character Count: Optimized for technical clarity and brevity.
