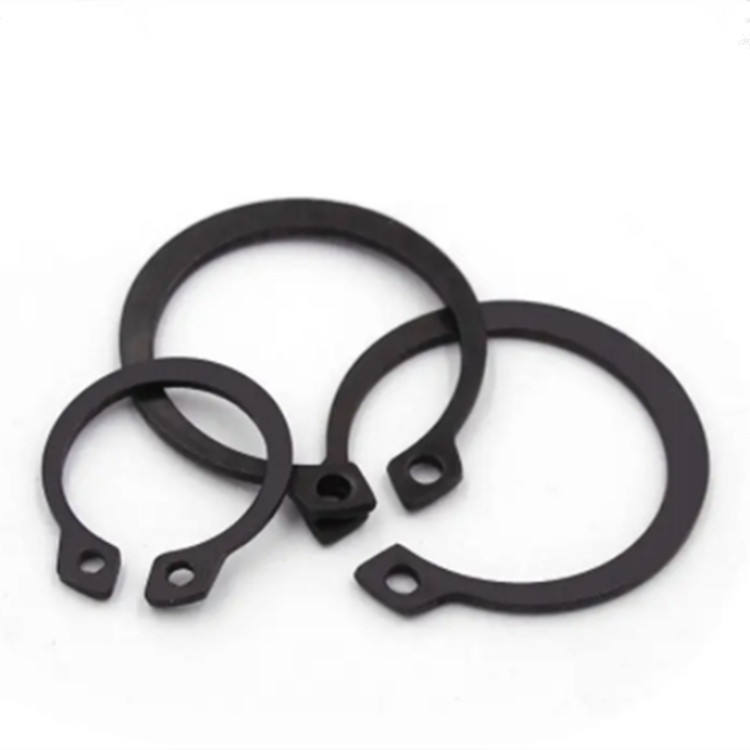

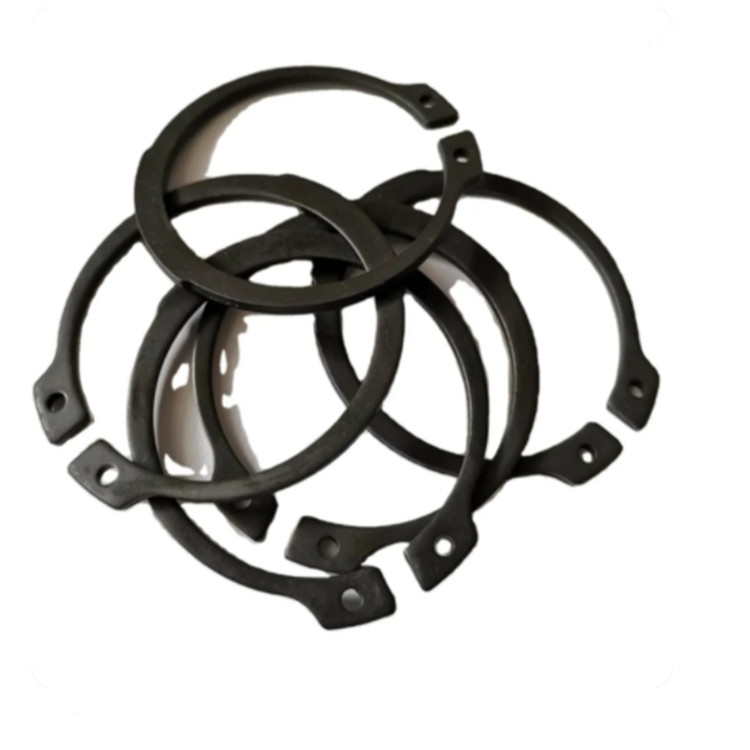

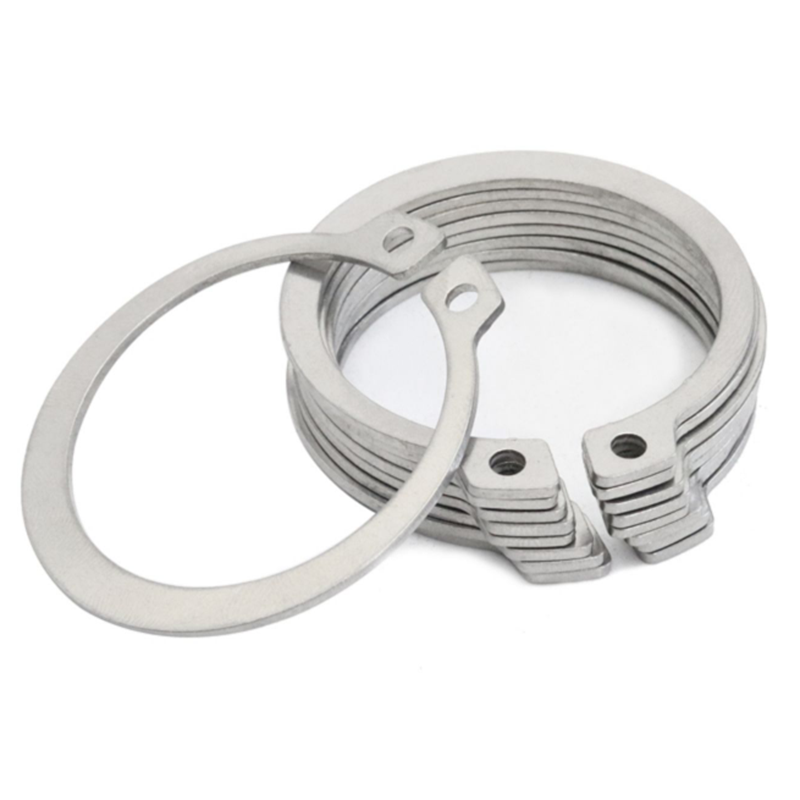

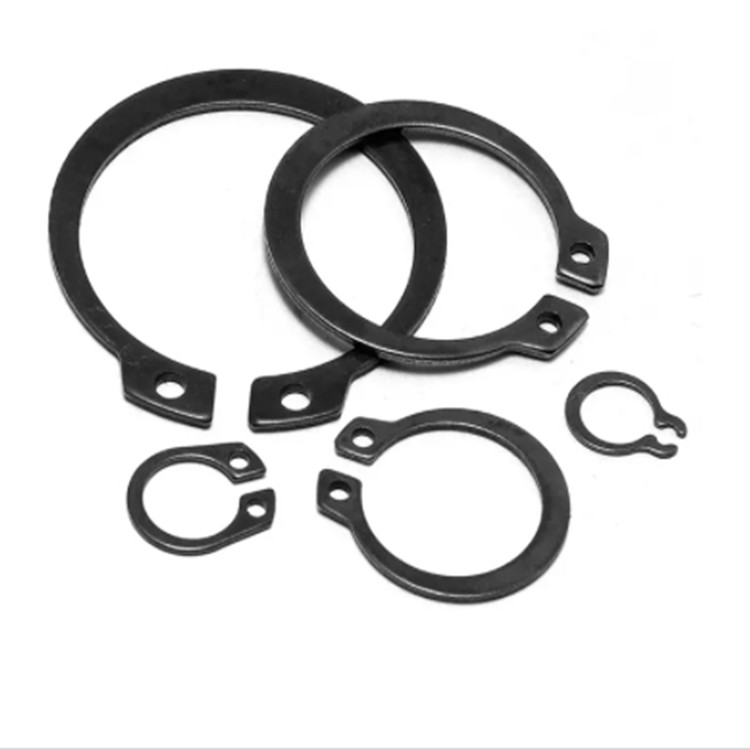

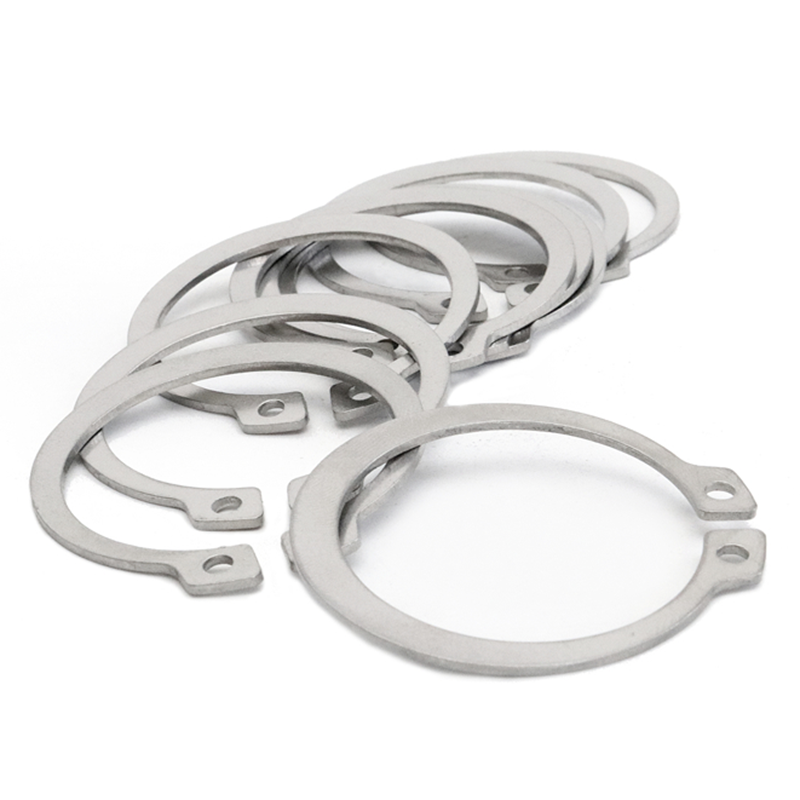

DIN 471 Retaining Ring
Shaft Retaining Ring (Outer Circlip)
Material:
- Typically made of spring steel (e.g., 65Mn, 60Si2Mn) or stainless steel (e.g., AISI 304/316) for elasticity and corrosion resistance.
- Surface treatments: zinc plating, black oxide coating, or phosphating to enhance durability and rust prevention.
Manufacturing Process:
- Stamping/Punching: Precision cutting from steel sheets to form the ring shape.
- Heat Treatment: Tempering and hardening to achieve required spring properties.
- Surface Finishing: Coating application (e.g., electroplating) for corrosion resistance.
- Deburring: Smoothing sharp edges to prevent installation damage.
Key Processing Points:
- Dimensional accuracy (inner/outer diameter, thickness) must align with DIN/ISO standards.
- Consistent elasticity and hardness post-heat treatment.
- Edge quality to avoid stress concentrations during use.
Applications:
- Axial fixation of bearings, gears, shafts, or pulleys in machinery.
- Automotive transmissions, industrial equipment, and precision instruments.
- Prevents component displacement in housings or bores.
Installation:
- Use specialized pliers (internal circlip pliers) to compress the ring into the groove.
- Ensure the bore diameter and groove dimensions match the ring specifications.
- Avoid over-expanding the ring to retain elasticity and prevent permanent deformation.
- Verify secure seating in the groove after installation.
Standards: Compliant with DIN 472 (hole rings) and ISO 8752, often paired with DIN 471 (shaft rings) for comprehensive axial retention solutions.
