Ball Bolt

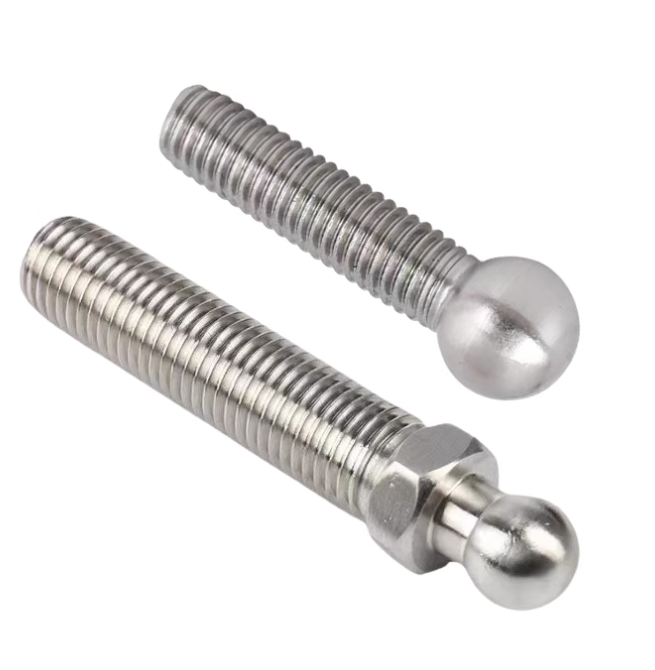

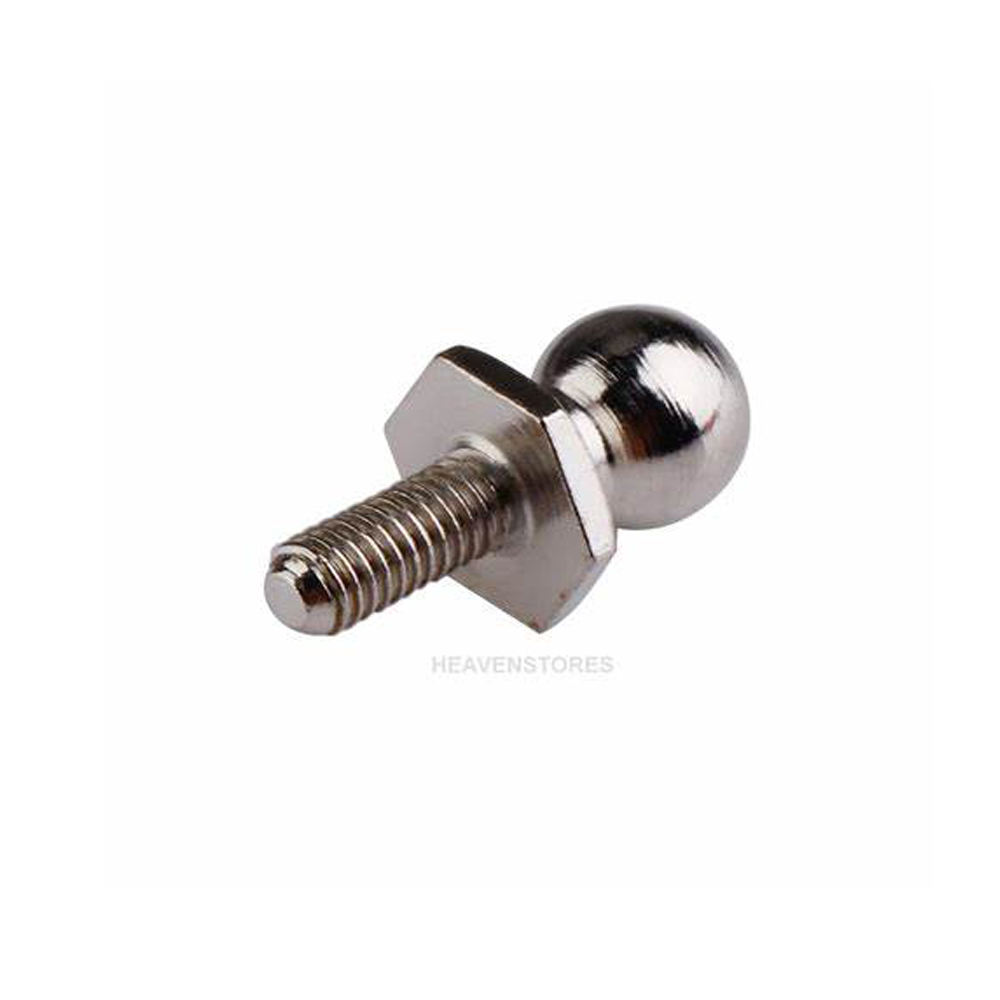

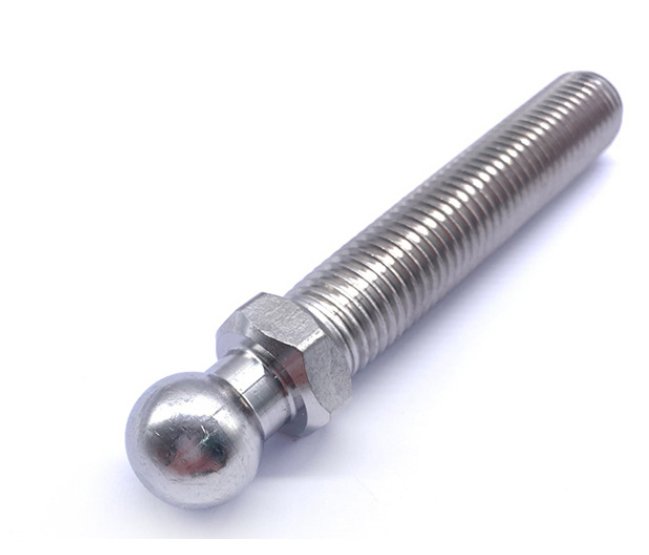

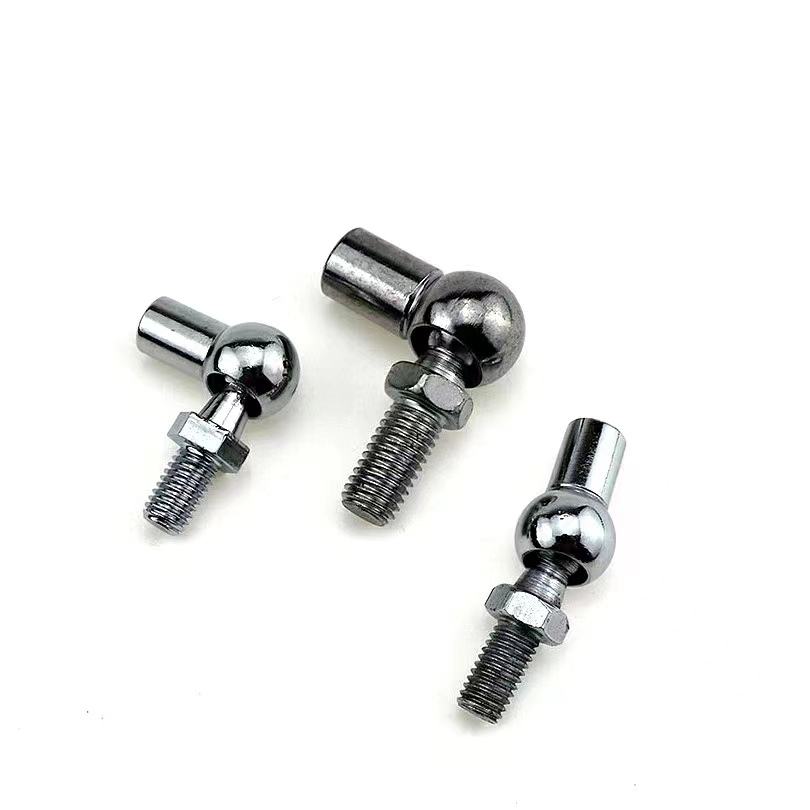

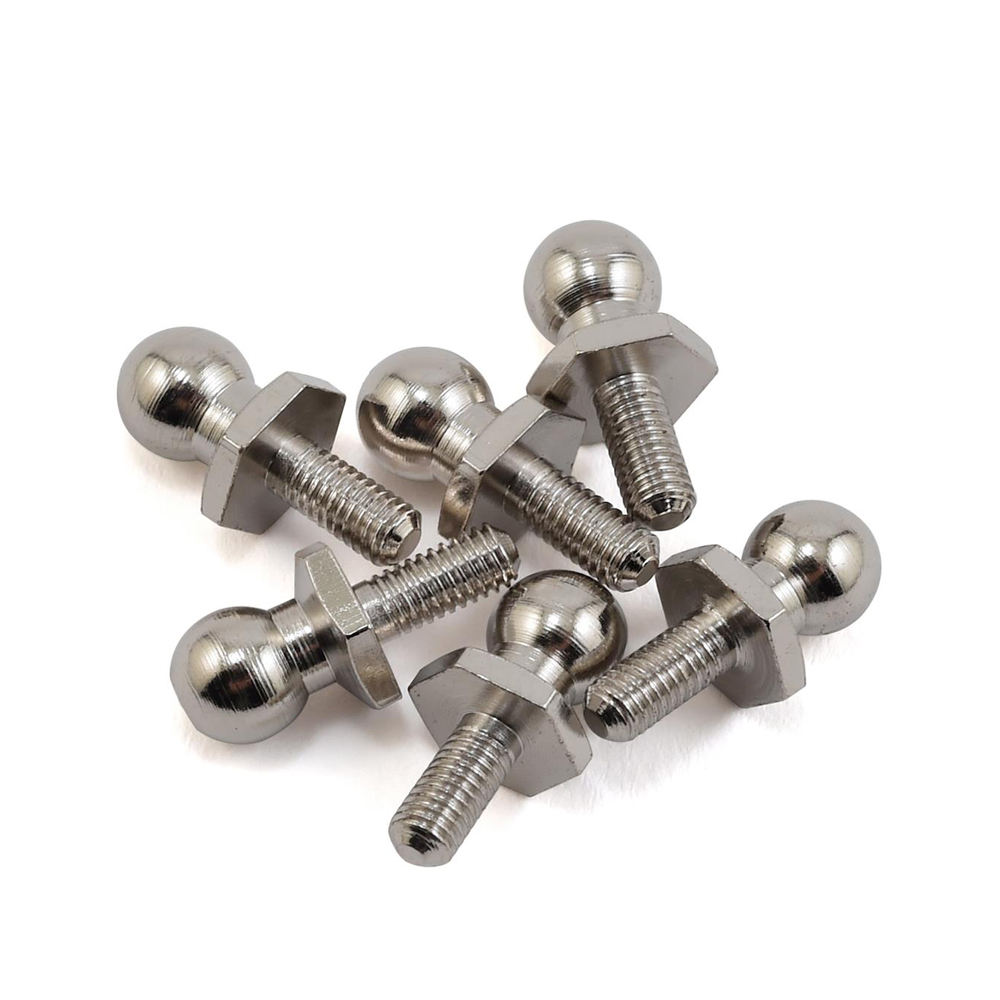

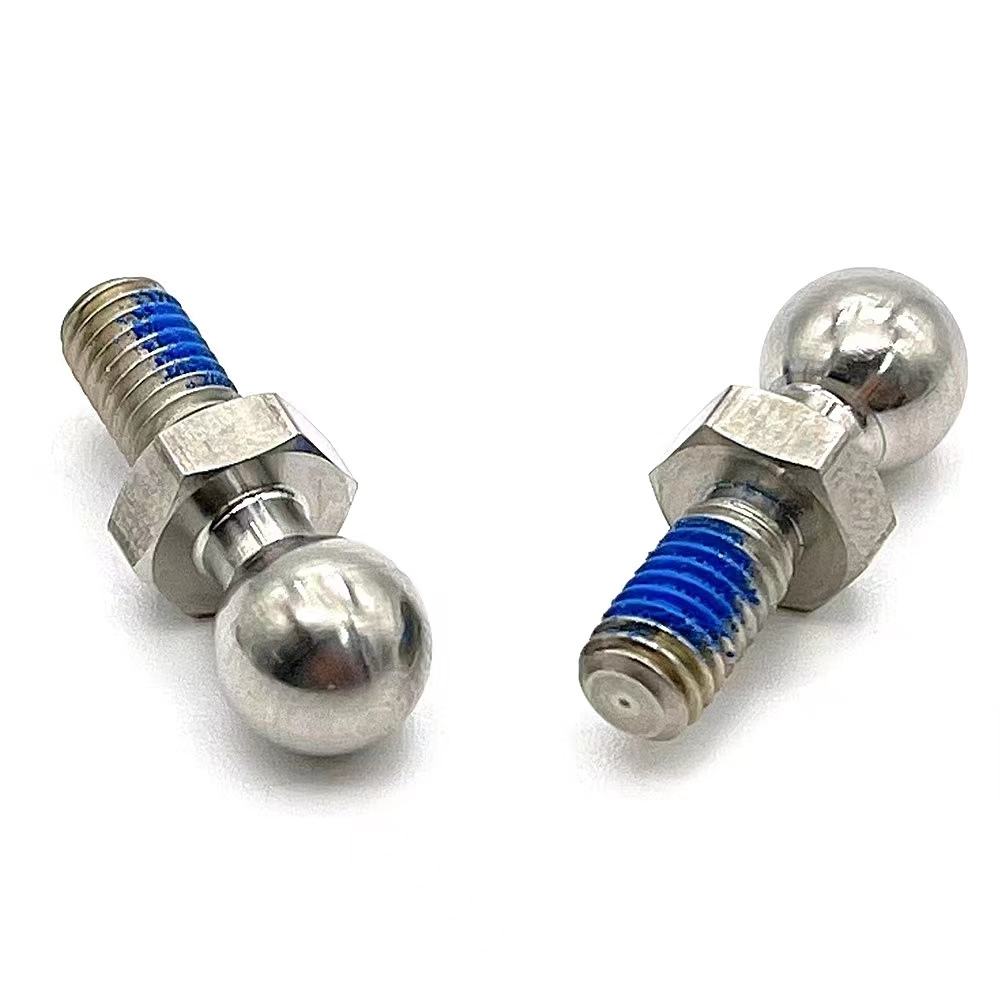

Ball Head Bolts (Spherical Head Bolts): Overview
Material:
- Common materials:
- Carbon steel: Grade 4.8/8.8 for general applications.
- Stainless steel: 304/316 for corrosion resistance in marine or chemical environments.
- Alloy steel: Heat-treated grades (e.g., 4140) for high-strength, high-wear applications.
- Surface treatments: Zinc plating, hot-dip galvanizing, Dacromet coating, or PTFE coating for friction reduction and corrosion protection.
Manufacturing Process:
- Cold Heading: Forms the spherical head and partially threaded shank from steel wire.
- Thread Rolling: Precision rolling of threads (metric/SAE) using dies for high fatigue resistance.
- Head Machining: CNC turning or grinding to achieve a smooth, spherical surface with precise radius.
- Heat Treatment: Quenching and tempering (for high-grade steel) to enhance hardness (HRC 25-40).
- Surface Finishing: Coating or polishing to reduce friction and improve aesthetics.
Key Production Considerations:
- Spherical head geometry: Tight radius tolerance (±0.05mm) for consistent articulation in joints.
- Thread concentricity: Ensures smooth engagement with mating nuts or threaded holes.
- Surface finish: Mirror-like polish on the ball head to minimize wear in dynamic applications.
- Material hardness: Balances strength and ductility to prevent cracking under angular loads.
Applications:
- Automotive suspension: Ball joints, tie-rod ends, and steering linkages.
- Robotics: Articulated arms and rotational joints requiring multidirectional movement.
- Furniture: Adjustable fittings for chairs, tables, and modular systems.
- Industrial machinery: Pivoting connections in conveyors, cranes, and hydraulic systems.
- Marine equipment: Corrosion-resistant pivot points for rigging and davits.
Installation:
- Tool selection: Use a wrench or socket on the bolt’s flats (if present) or a specialized spherical socket.
- Alignment: Position the spherical head into a matching socket or bearing housing.
- Thread engagement: Hand-tighten the nut or threaded component to avoid misalignment.
- Torque application: Apply manufacturer-specified torque to the nut, ensuring smooth articulation.
- Lubrication: Apply grease to the spherical surface if required for high-movement applications.
Note:
- Load direction: Designed for combined axial and angular loads; avoid pure lateral forces.
- Maintenance: Regularly inspect for wear, corrosion, or play in the joint.
- Replacement: Replace bolts with pitted or scored spherical surfaces to prevent joint failure.
Ideal for engineers and designers needing multidirectional, low-friction fastening in dynamic mechanical systems.
Key Terms: Ball Head Bolts, Spherical Head Bolts, Articulated Fasteners, Multidirectional Joints, DIN 7339.
