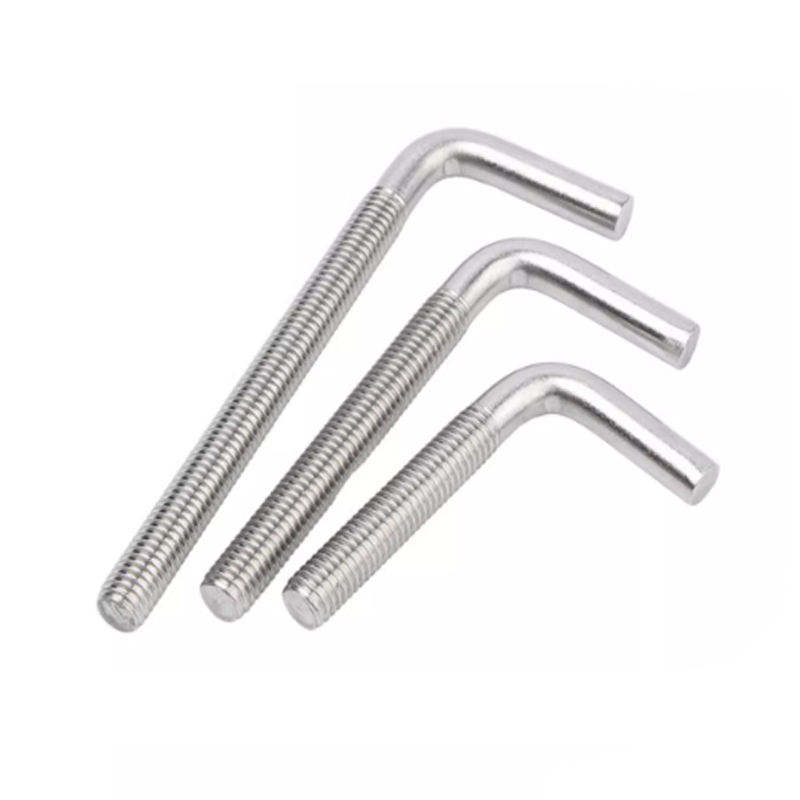

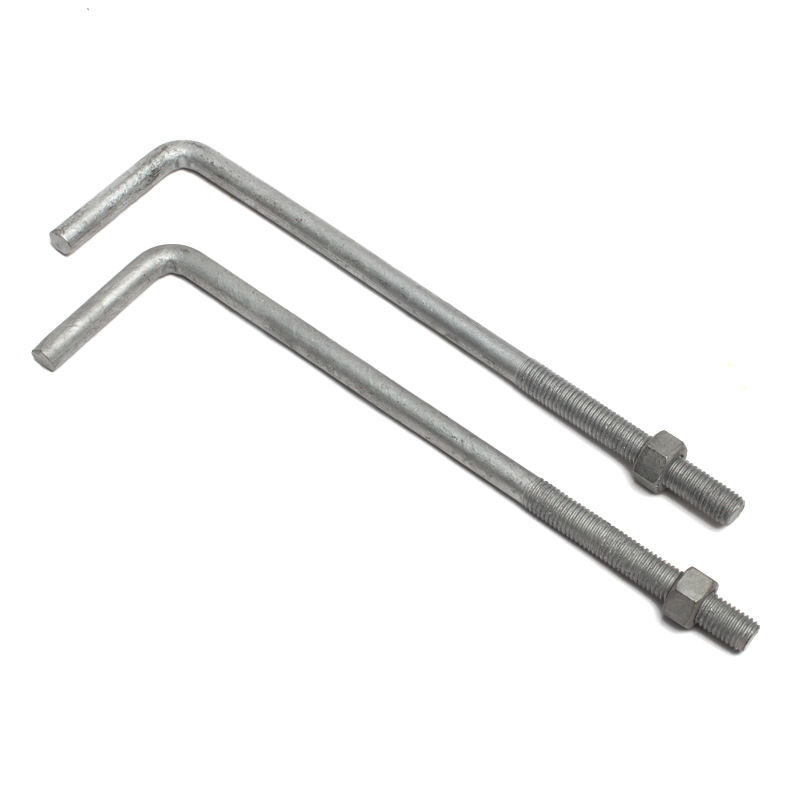

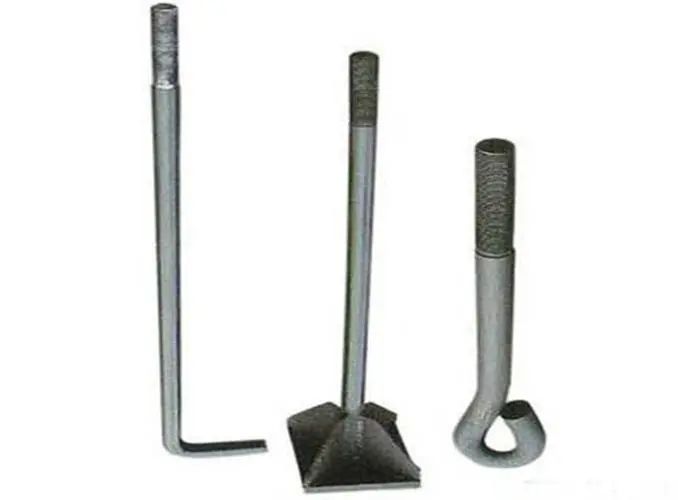

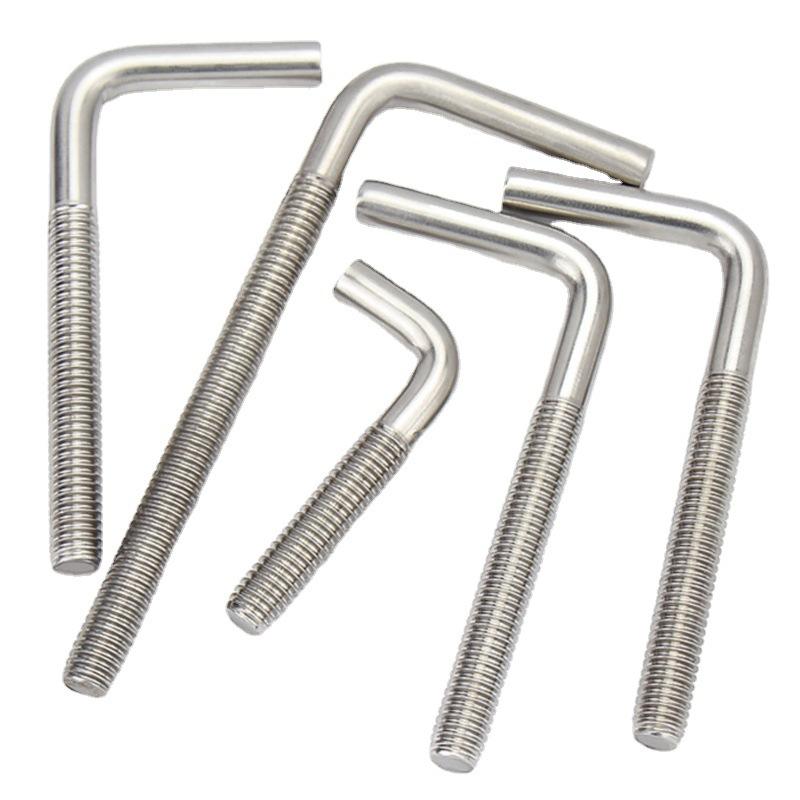

Anchor Bolt
Anchor Bolts (Foundation Bolts): Overview
Material:
- Common materials:
- Carbon steel: Grade 8.8/10.9 (high tensile strength for structural loads).
- Stainless steel: 304/316 (corrosion resistance in marine or chemical environments).
- Galvanized steel: Hot-dip galvanized (HDG) or mechanically galvanized for outdoor/industrial use.
- Alloy steel: ASTM F1554 Grade 55/105 (for seismic or high-stress applications).
- Surface treatments: Epoxy coating, Dacromet®, or zinc-rich paint for enhanced corrosion protection.
Manufacturing Process:
- Cold Heading: Forms the bolt head (hex, L-shape, J-shape) and shank from steel rod.
- Thread Rolling: Cold-forming threads (metric/SAE) via dies to improve fatigue resistance.
- Bending (for L/J bolts): Precision bending of the embedded end using hydraulic tools.
- Heat Treatment: Quenching and tempering (for high-grade steel) to achieve hardness (HRC 22-35) and tensile strength.
- Surface Finishing: Hot-dip galvanizing, epoxy coating, or passivation (stainless steel).
Key Production Considerations:
- Thread accuracy: Ensures compatibility with nuts and load distribution.
- Bend consistency: Uniform angle and radius for L/J-shaped bolts to meet embedment standards.
- Coating adhesion: Critical for corrosion resistance in concrete or acidic environments.
- Straightness tolerance: ≤1mm per meter for long bolts to prevent misalignment during installation.
Applications:
- Construction: Securing steel columns, bridge piers, and building frameworks to concrete foundations.
- Heavy machinery: Anchoring presses, turbines, and generators in industrial plants.
- Energy infrastructure: Wind turbine bases, transmission towers, and nuclear facilities.
- Transportation: Rail track fastening, airport runway lighting, and highway signage.
- Marine: Dock bollards, offshore platforms, and coastal structures.
Installation:
- Template positioning: Use a template to align bolts in the concrete formwork.
- Embedment:
- Wet concrete method: Insert bolts into fresh concrete, adjust position before curing.
- Post-installed method: Drill holes into cured concrete, secure with epoxy adhesive.
- Alignment check: Verify bolt projection height and alignment using laser levels.
- Torque tightening: After concrete curing, tighten nuts to specified torque (e.g., 200–800 Nm for M24–M64 bolts).
- Grouting: Fill gaps around bolts with non-shrink grout for added stability.
Note:
- Corrosion protection: Use double-coated (HDG + epoxy) bolts in highly corrosive environments.
- Seismic design: Select ductile materials (e.g., ASTM F1554 Grade 55) for earthquake-prone areas.
- Inspection: Check for coating damage, thread integrity, and alignment before concrete pouring.
Ideal for civil engineers, contractors, and industrial planners requiring robust, code-compliant anchoring solutions for permanent structural installations.
Key Terms: Anchor Bolts, Foundation Bolts, ASTM F1554, Concrete Embedment, Seismic Anchors.
Character Count: Optimized for technical precision and clarity.
